| SEM-VIEW | |
 | |
| GRADE DATA | |
| Theoretical Density（g/cm3） | 8.25 |
| H2-Loss（%） | ≤0.65 |
| Apparent Density（g/cm3） | 0.5-0.7 |
| Tap Density（g/cm3） | 1.0-1.3 |
| D10 Laser（um） | 1.7-2.3 |
| D50 Laser（um） | 3.3-4.2 |
| D90 Laser（um） | 5.5-6.5 |

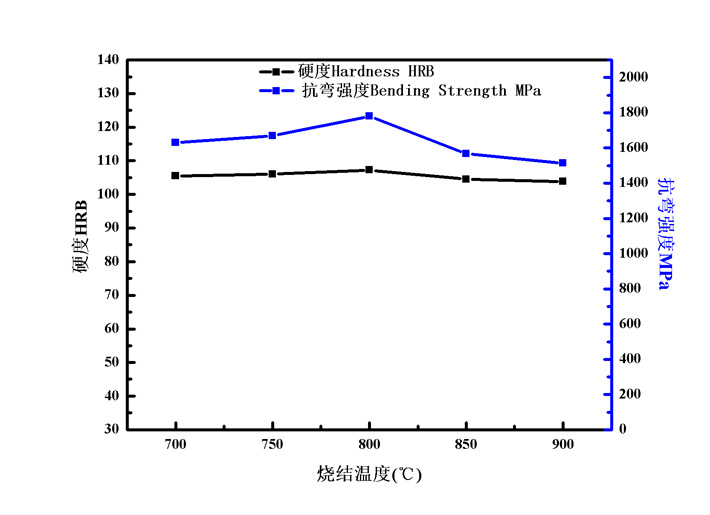

| Hardness/Bending Strength-Temperature Curve |
 |

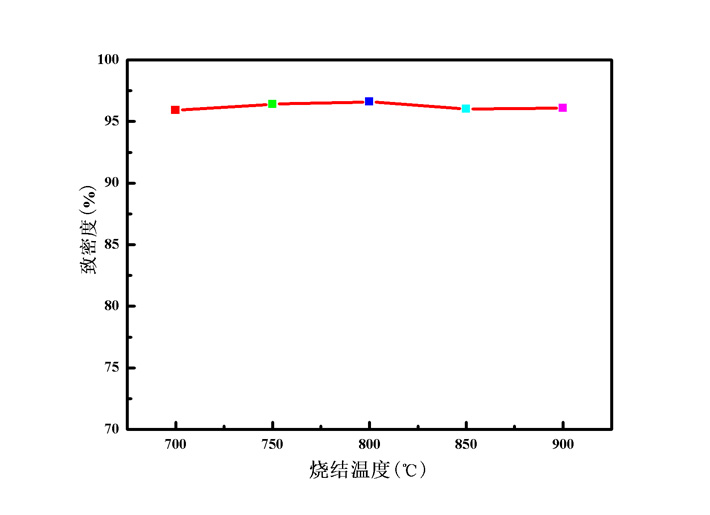

| Density-Temperature Curve |
 |
Product Features:
Large surface area, high activity, low sintering temperature, high density, high hardness and bending strength, good holding power to the diamond.
Main Application:
Diamond sawing, core drills, granite and ceramic sawing tools and so on, helpful to the improvement of tools life.
