| SEM-VIEW | |
 | |
| GRADE DATA | |
| Theoretical Density（g/cm3） | 8.17 |
| H2-Loss（%） | ≤0.6 |
| Apparent Density（g/cm3） | 0.6-0.7 |
| Tap Density（g/cm3） | 1.7-1.8 |
| D10 Laser（um） | 1.2-1.6 |
| D50 Laser（um） | 2.9-3.5 |
| D90 Laser（um） | 6.0-7.5 |

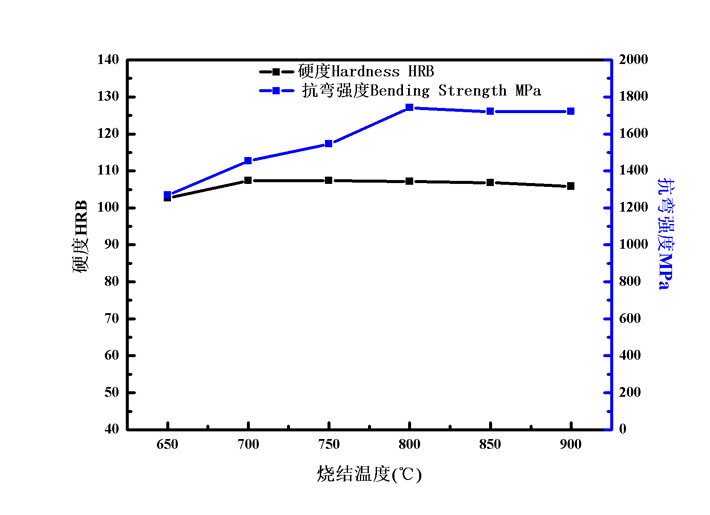

| Hardness/Bending Strength-Temperature Curve |
 |

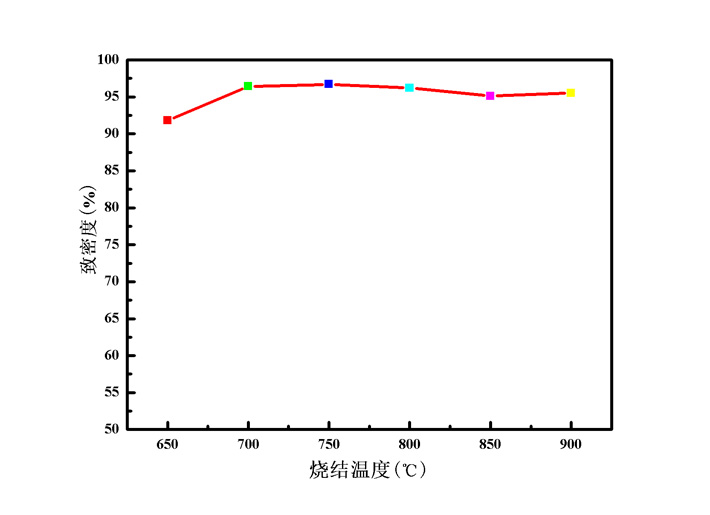

| Density-Temperature Curve |
 |
Product Features:
Large surface area, high activity, low sintering temperature, high density, superior sintering stability, high hardness and bending strength, good temperature performance.
Main Application:
Used in laser welding bottom powder, synthetic diamond powder catalyst, drill bits, grinding wheel ceramics, concrete saw, granite saw blade and other high-grade tools, effectively improving the mechanical properties and heat resistance of matrix.
